To: slacker711 who wrote (10543)8/29/2022 8:02:24 PM
From: EvanG1 Recommendation

Recommended By
slacker711

  Read Replies (2) of 10712

Wolfspeed is selling automotive qualified bare die MOSFETs that have a Rds(on) of 17mohms at 1200v.

That is an interesting data point because in the marketing material they say it is a 25 mm^2 die size.

assets.wolfspeed.com

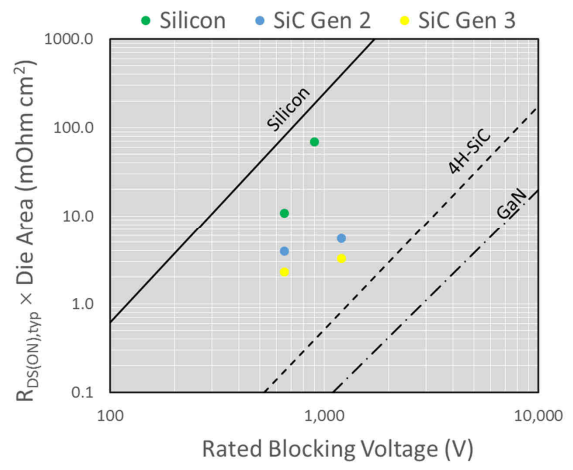

That leads to a 4.25 mohm * cm^2 figure of merit. Which is actually higher than the STM Gen 3 of 3.3 mohm * cm^2 in the below figure.

st.com



According to the same presentation STM could reach 2.8 mohm * cm^2 with their trench. But this presentation is a little old and numbers change. Seems like Wolfspeed needs to announce their next generation sometime.
